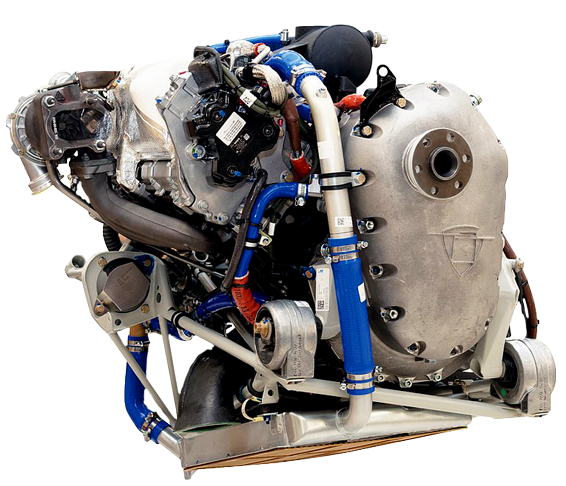

Austro AE330 Engine
Austro AE330 Engine
With the E4-Series of heavy fuel piston engines, Austro Engine is one of the leading jet fuel piston engine producers in General Aviation. The E4-Series stands for safe and reliable global operations with more than 4 million flight hours from more than 4,500 engines (Status March 2024).
The AE330 is the most powerful heavy fuel engine in its class, based on the successful and reliable AE300. It provides more power than the AE300 at the same weight. Great fuel efficiency, reliability and easy operation make the AE330 the best aviation engine of today and the future.
State of the art technology ensures the highest level of safety and lower fuel costs. Modern common rail technology provides the highest levels of reliability.
With a redundant EECU system the engine is failsafe.
The AE330 180 HP / 132 kW for take off and maximum cruise power.
The low vibration level and the single power lever design improve the engine operation comfort and take a lot of workload from the pilot. This makes the engine the ideal powerplant for flight schools, private pilots and even special mission aircraft.
The AE330’s jet fuel certification makes it easier to operate worldwide than the more common Avgas engine, since Avgas is hard to come by in certain regions and often costs many times the price of jet fuel.
Max. take off power
132 kW (180 hp)
Max. continuous power
126 kW (171 hp)
Max. torque
550 Nm
Max. RPM
2,300 min-1
Displacement
1,991 cm3 (121.5 cu.in)
Weight (dry)
186 kg (410 lb)
Fuel
Kerosene
Fuel consumption (at 100 % power)
at 100 % power 39 l/h
Fuel consumption (at 60 % power)
at 60 % power 21 l/h
All specifications, weights, representations, colors, equipment, use of materials and model references provided herein are for purely illustrative purposes and legally non-binding, subject to alterations and not warranted or guaranteed to be true or accurate.
